  You are in : Products list >>Active carbon Molecular sieve

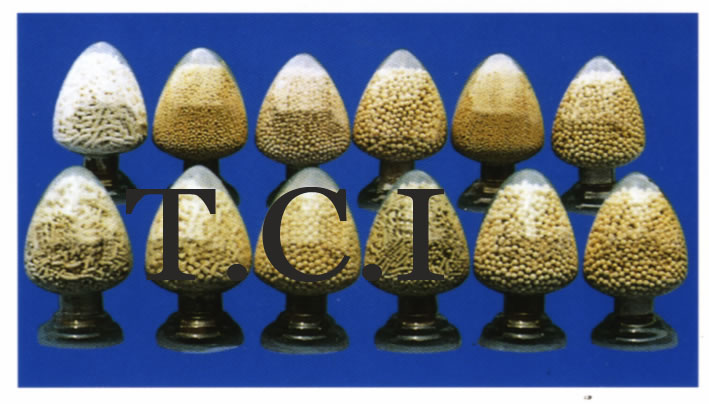

molecular sieve
molecular sieve Chemical Formula: :2/3K2O*1/3Na2O*Al2O3*2SiO2*9/2H2O
molecular sieve Si/Al ratio: SiO2/Al2O3≈2
molecular sieve Pore diameter: About 3molecular sieve
molecular sieve Use: Used as desiccant in petrochemical, pharmaceutical and other    industries.

molecular sieve Technical parameter:
Parameter
Unit
Bead
Pellet
Diameter
Mesh
8*12
4*8
1/16"
1/8"
Water adsorption capacity
≥ %wt
20
20
20
20
Ethylene adsorption capacity
≥ mg/g
3.0
3.0
3.0
3.0
Bulk density
≥ g/ml
0.68
0.68
0.64
0.64
Strength
≥ N
30
75
35
70
Abrasion
≤ %wt
0.1
0.1
0.2
0.2
Water content
≤ %wt
1.5
1.5
1.5
1.5
molecular sieveReactivation:
   1. Removal of water: Hot gas at 200-350°C and pressure 0.3-0.5Kg/cm2 flows through the molecular sieve bed for 3-4 h. let temperature decreases down to 110-180°C, cooling.
   2. Removal of organics: Regeneration is achieved by means of steam treatment to remove organics, and then remove water with method 1.
molecular sieve Conservation:
   Room temperature, humidity <90%, non-expose to air; non-contact with water, acid and alkali..
molecular sieve Packing:
   25 Kg (10 gallon) steel pail
   150 Kg (55 gallon) steel pail
